Description

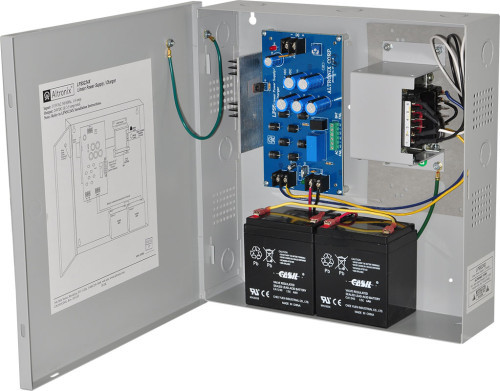

Linear Power Supply/Charger, Single Class 2 Output, AC Fail Supervision, 24VDC @ 3.5A, 115VAC, BC300 Enclosure
Altronix LPS5C24X linear power supply/charger converts a 115VAC 50/60Hz input to a 24VDC @ 3.5A continuous supply current. The output stays regulated until the batteries discharge to 25% capacity.
Input
115VAC 50/60Hz rated @ 1.6A.
Output
24VDC output.
3.5A continuous supply current.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.
Battery
Battery leads included.
Built-in charger for sealed lead acid or gel type batteries.
Automatic switch over to stand-by battery when AC fails (zero voltage drop).
PTC battery protection.
Visual Indicators
AC/DC power LED indicator.
Supervision
Low battery and AC fail supervision (dry relay outputs 1A @ 28VDC).
Electrical
Temperature:
Operating 0° C to 49° C (32° F to 120° F).
Storage - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr. (approx.): 43 BTU/Hr.
