Product Overview

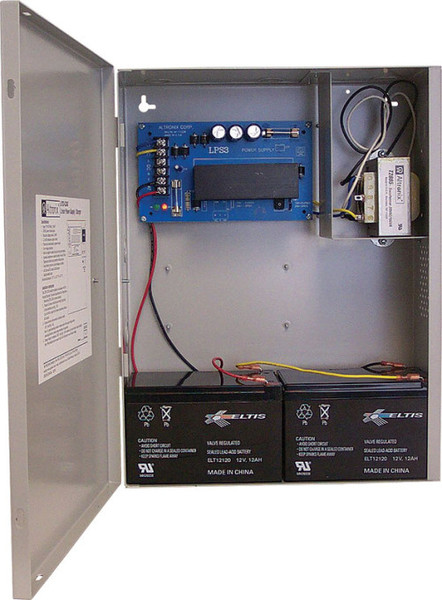

Linear Power Supply/Charger, Single Class 2 Output, AC Fail Supervision, 24VDC @ 2.5A, 220VAC, BC400 Enclosure
Altronix LPS3C24X220 is specifically designed to provide the power needed by the most demanding security and access control applications. It converts a 220VAC 50/60Hz input to a 24VDC, 2.5A output.
Input
220VAC 50/60Hz rated @ 0.5A.
Output
24VDC output.
2.5A continuous supply current.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.
Battery
Battery leads included.
Built-in charger for sealed lead acid or gel type batteries.
Automatic switch over to stand-by battery when AC fails (zero voltage drop).
Fused battery protection (circuit breaker available).
Visual Indicators
AC/DC power LED indicator.
Electrical Temperature:
Operating 0° C to 49° C (32° F to 120° F).
Storage - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr: (approx.): 31 BTU/Hr.
