Description

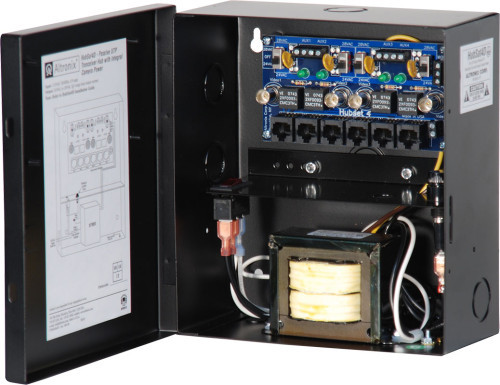

UTP Passive Transceiver Hub, 4 Channel, Video up to 750', Integrated 24/28VAC Power Supply, 220VAC, Black BC100 Enclosure
Altronix HubSat4DV Passive UTP Transceiver Hub with Integral Camera Power transmits UTP video, RS422/RS485 data and power over a single CAT-5 or higher structured cable. Unit provides 4 camera channels in a wall mount enclosure. Video transmission range is up to 750 ft. max. per channel. Units are compatible with AC and/or DC fixed or PTZ cameras when utilizing Altronix HubWayAv or HubWayDv Video Balun/Combiners. In addition, the unit features individually selectable 24VAC or 28VAC PTC protected outputs with surge suppression. Optionally, the HubSat4DV can be used as an accessory module to transmit video from up to 4 cameras over a single CAT-5 or higher structured cable back to the HubWayV, HubWayLDV or HubWayLDHV Passive and Active UTP Transceiver Hubs. In addition, the HubSat4DV provides power to these cameras locally to eliminate the possibility of voltage drop associated with long cable runs.
Input
220VAC 50/60Hz, 0.5A.
Primary in-line fuse is rated @ 3.5A/250V.
Video
Four (4) channels of quality video over twisted pair up to a distance of 228.6m (750 ft.) per channel.
Four (4) 75 ohm video outputs.
Power
Individually selectable 24VAC or 28VAC power outputs with OFF position.
PTC protected outputs.
PTCs are rated @ 1A per channel.
Unit provides up to 1A max. per channel not to exceed a total of 4A maximum current.Surge suppression.
Data
RS422/RS485 data input.
Visual Indicators
Four (4) power LED indicators.
Temperature
Operating 0° C to 49° C (32° F to 120° F).
Storage - 20° C to 70°C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.):
24VDC: 49 BTU/Hr.
28VDC: 57 BTU/Hr.
