Product Overview

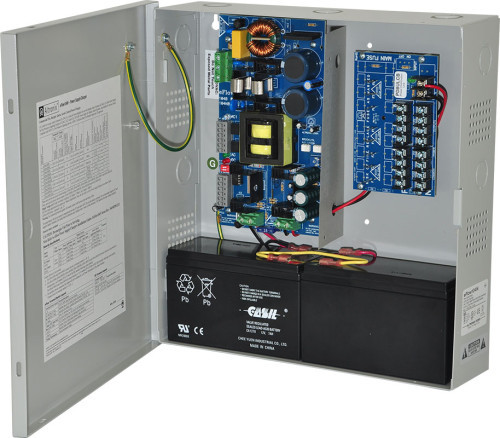

Power Supply Charger, 8 PTC Class 2 Outputs, 24VDC @ 10A, Aux Output, FAI, LinQ2 Ready, 220VAC, BC300 Enclosure
Altronix eFlow104N8DV is a power supply/charger that converts a 220VAC (working range 198VAC - 256VAC), 50/60Hz input into eight (8) PTC protected 24VDC outputs with a total of 10A max. The unit includes an unswitched aux. output. It also offers a suite of features that includes fire alarm disconnect, overvoltage protection, and low power disconnect which prevents deep discharge of stand-by batteries.
Input
220VAC (working range 198VAC - 256VAC), 50/60Hz, 2.7A.
Input fuse: 5A/250V.
Output
Eight (8) PTC protected outputs (auto-resettable).
Outputs are rated @ 2A.
24VDC @ 10A supply current.
Auxiliary output rated @ 1A (unswitched).
Overvoltage protection.
Battery Backup
Built-in charger for sealed lead acid or gel type batteries.
Automatic switch over to stand-by battery when AC fails. Transfer to stand-by battery power is instantaneous with no interruption.
Supervision
AC fail supervision (form "C" contacts).
Notification trigger is selectable for 30 seconds (factory set) or 2 hours.
Battery fail and presence supervision (form "C" contacts).
Low power shutdown. Shuts down DC output terminals if battery voltage drops below 70-75% (depending on the power supply). Prevents deep battery discharge.
Fire Alarm Disconnect
Supervised Fire Alarm disconnect (latching or non-latching) 10K EOL resistor. Operates on a normally open (NO) or normally closed (NC) trigger.
Electrical
Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.): 123 BTU/Hr.
System AC input VA requirement: 594VA.
Visual Indicators
Green AC Power LED indicates 220VAC present.
AC input and DC output LED indicators.
Additional Features
Short circuit and overload protection.
Unit is complete with power supply, enclosure, battery leads, and cam lock.
