Product Overview

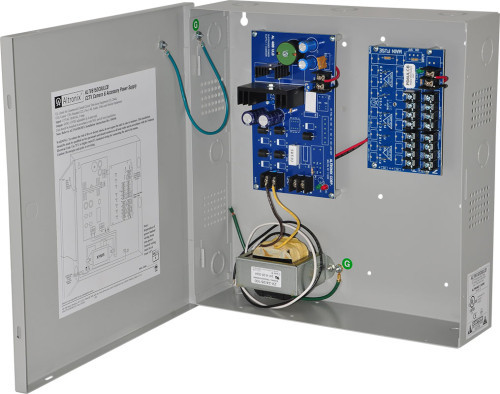

CCTV Power Supply, 8 PTC Class 2 Outputs, 6-15VDC @ 4A, 220VAC, BC300 Enclosure
ALTV615DC8CB220 is designed with eight (8) individually PTC protected outputs for powering CCTV Cameras and other video accessories.
Input
Input 220VAC (working range 198VAC-256VAC), 50/60 Hz, 0.5A.
Output
Eight (8) PTC protected outputs (auto-resettable).
6VDC to 15VDC field adjustable.
4A total continuous supply current (0.50A per device, 2.5A max.).
Outputs are rated @ 2.5A.
Filtered and electronically regulated outputs.
Features
AC input and DC output LED indicators.
Power ON/OFF switch.
Unit maintains camera synchronization.
Ease of installation saves time and eliminates costly labor.
Temperature
Operating 0° C to 49° C (32° F to 120° F).
Storage - 20° C to 70ºC ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.): 12-31 BTU/Hr., depending on output.
System AC input VA requirement: 110VA.
