Product Overview

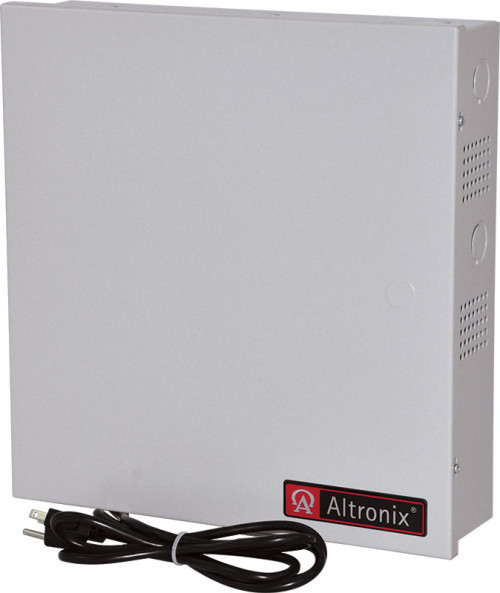

CCTV Power Supply, 16 Fused Outputs, 6-15VDC @ 6A, 115VAC, BC300 Enclosure, includes 3-wire line cord
ALTV615DC616UL3 provide 6VDC to 15VDC distributed via sixteen (16) fuse protected outputs for powering CCTV Cameras, heaters and other video accessories. Factory installed 3-wire line cord.
Input
Input 115VAC, 50/60 Hz, 0.9A.
Output
Sixteen (16) fuse protected outputs.
6VDC to 15VDC field adjustable.
6A total continuous supply current (0.375A per device, 3.5A max.).
Output fuses are rated @ 3.5A/250VAC.
Filtered and electronically regulated outputs.
Electrical
Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.): 18-46 BTU/Hr.
System AC input VA requirement: 103.5VA.
Features
AC input and DC output LED indicators.
Factory installed 3-wire line cord.
Illuminated power disconnect circuit breaker with manual reset.
Spare fuse(s) provided.
Unit maintains camera synchronization.
Ease of installation saves time and eliminates costly labor.
