Description
CCTV Power Supply, 8 Isolated PTC Class 2 Outputs, 24VAC @ 12.5A, 115VAC, BC100M Enclosure, includes 3-wire line cord

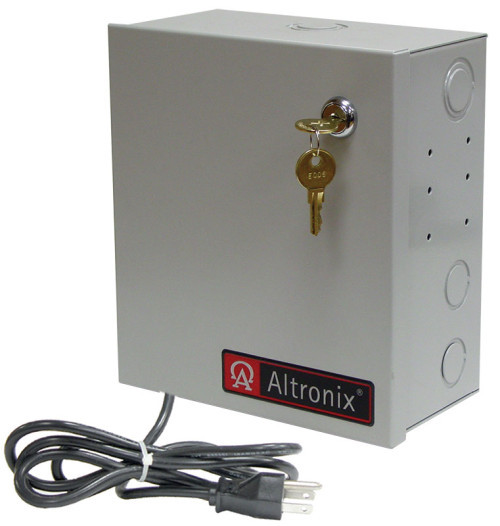

ALTV284ULCBMI3 Isolated CCTV Power Supply provides 24VAC distributed via eight (8) isolated Class 2 Rated PTC protected power limited outputs for powering CCTV Cameras, heaters and other video accessories.
Input
115VAC, 50/60Hz, 3A.
Output
Eight (8) Class 2 Rated PTC protected outputs.
24VAC @ 12.5A (300VA) supply current.
Outputs are rated @ 2.5A.
Surge suppression.
Electrical
Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.): 154 BTU/Hr.
System AC input VA requirement: 345VA.
Features
Illuminated master power disconnect circuit breaker with manual reset.
Unit maintains camera synchronization.
Spare fuses provided.
Factory installed 3-wire line cord.
