Description

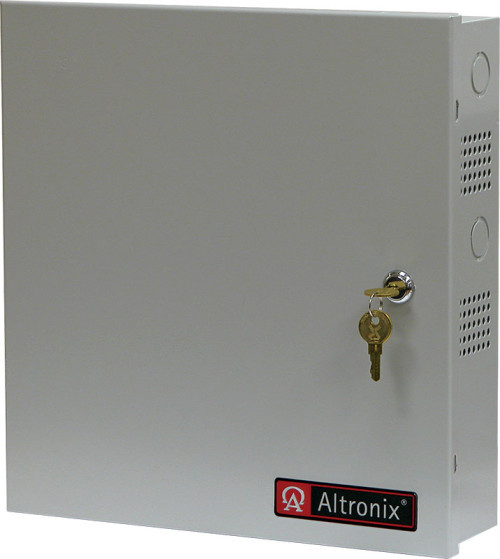

CCTV Power Supply, 8 PTC Outputs, 24/28VAC @ 28A, 115VAC, BC300 Enclosure
ALTV248600CB AC Wall Mount CCTV Power Supply provides 24VAC or 28VAC distributed via Eight (8) PTC protected outputs for powering CCTV Cameras, heaters and other video accessories.
Input
115VAC, 50/60Hz, 5.4A.
Output
Eight (8) PTC protected outputs (auto-resettable).
24VAC @ 28A (700VA) supply current (3.5A per device, 2.5A max.) or 28VAC @ 25A (700VA) supply current (3.125A per device, 2.5A max.).
Outputs are rated @ 2.5A.
Surge suppression.
Electrical
Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.):
24VAC: 344 BTU/Hr.
28VAC: 358 BTU/Hr.
System AC input VA requirement: 621VA.
Features
Secondary fuse rated @ 15A/32V.
AC power LED.
Power ON/OFF switch.
