Description

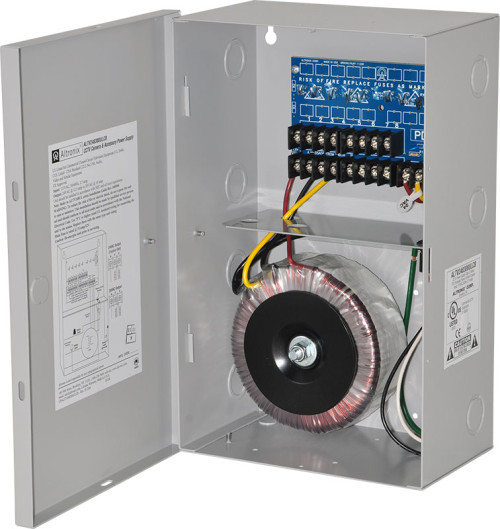

CCTV Power Supply, 8 PTC Class 2 Outputs, 24/28VAC @ 12.5A, 115VAC, BC200 Enclosure
ALTV248300ULCB provides 24VAC or 28VAC distributed via Eight (8) Class 2 Rated PTC protected power limited outputs for powering CCTV Cameras, heaters and other video accessories.
Input
115VAC, 50/60Hz, 2.7A.
Output
Eight (8) Class 2 Rated PTC protected power limited outputs (auto-resettable).
24VAC @ 12.5A (300VA) supply current (1.563A per device, 2.5A max.) or 28VAC @ 10A (280VA) supply current (1.25A per device, 2.5A max.).
Outputs are rated @ 2.5A.
Surge suppression.
Features
Secondary fuse rated @ 15A/32V.
AC power LED.
Power ON/OFF switch.
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.):
24VAC: 154 BTU/Hr.
28VAC: 143 BTU/Hr.
System AC input VA requirement: 310.5VA.
