Product Overview

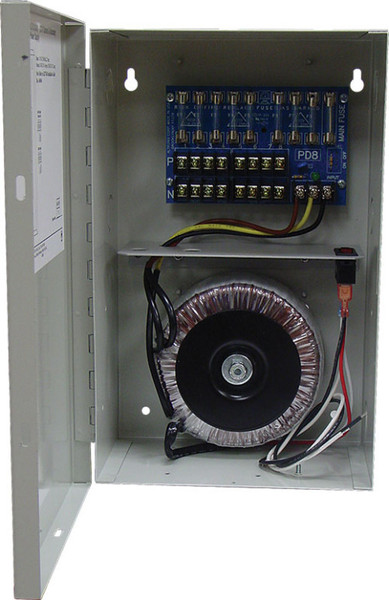

CCTV Power Supply, 8 Fused Outputs, 24/28VAC @ 14A, 115VAC, BC200 Enclosure
ALTV248300 AC Wall Mount CCTV Power Supply provides 24VAC or 28VAC distributed via Eight (8) fuse protected outputs for powering CCTV Cameras, heaters and other video accessories.
Input
115VAC, 50/60Hz, 2.7A.
Output
Eight (8) fuse protected outputs.
24VAC @ 14A (350VA) supply current (1.75A per device, 3.5A max.) or 28VAC @ 12.5A (350VA) supply current (1.563A per device, 3.5A max.).
Outputs are rated @ 3.5A.
Surge suppression.
Electrical
Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.):
24VAC: 154 BTU/Hr.
28VAC: 143 BTU/Hr.
System AC input VA requirement: 310.5VA.
Features
Secondary fuse rated @ 15A/32V.
AC power LED.
Power ON/OFF switch.
Spare fuses provided. (all models w/primary and/or secondary fus
