Description

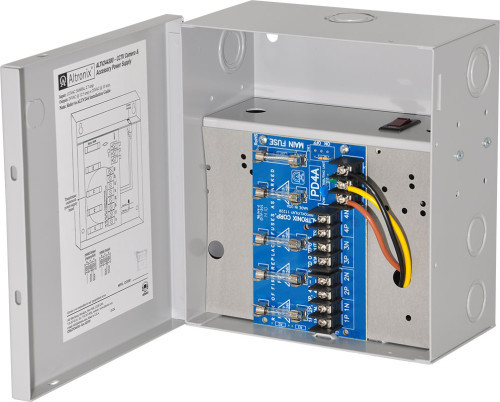

CCTV Power Supply, 4 Fused Outputs, 24/28VAC @ 12.5A, 115VAC, BC100M Enclosure
ALTV244300 AC Wall Mount CCTV Power Supply provides 24VAC or 28VAC distributed via four (4) fuse protected outputs for powering CCTV Cameras, heaters and other video accessories.
Input
115VAC, 50/60Hz, 2.7A.
Output
Four (4) fuse protected outputs.
24VAC @ 12.5A (300VA) supply current (3.13A per device, 3.5A max.) or 28VAC @ 10A (300VA) supply current (2.5A per device, 3.5A max.).
Outputs are rated @ 3.5A.
Surge suppression.
Electrical
Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.):
24VAC: 123 BTU/Hr.
28VAC: 143 BTU/Hr.
System AC input VA requirement: 310.5VA.
Features
Secondary fuse rated @ 15A/32V.
AC power LED.
Power ON/OFF switch.
Spare fuses provided. (all models w/primary and/or secondary fuses).
