Product Overview

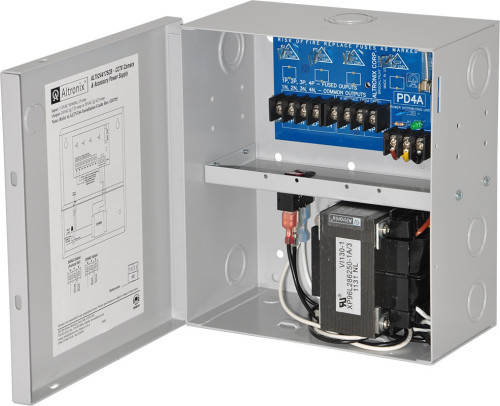

CCTV Power Supply, 4 PTC Outputs, 24/28VAC @ 7.25A, 115VAC, BC100M Enclosure
ALTV244175CB AC Wall Mount CCTV Power Supply provides 24VAC or 28VAC distributed via four (4) PTC protected outputs for powering CCTV Cameras, heaters and other video accessories.
Input
115VAC, 50/60Hz, 1.5A.
Output
Four (4) PTC protected outputs (auto-resettable).
24VAC @ 7.25A (175VA) supply current (1.81A per device, 2.5A max.) or 28VAC @ 6.25A (175VA) supply current (1.56A per device, 2.5 A max.).
Outputs are rated @ 2.5A.
Surge suppression.
Features
Secondary fuse rated @ 10A/250V.
AC power LED.
Power ON/OFF switch.
Electrical
Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.):
24VAC: 89 BTU/Hr.
28VAC: 90 BTU/Hr.
System AC input VA requirement: 172.5VA.
