Description

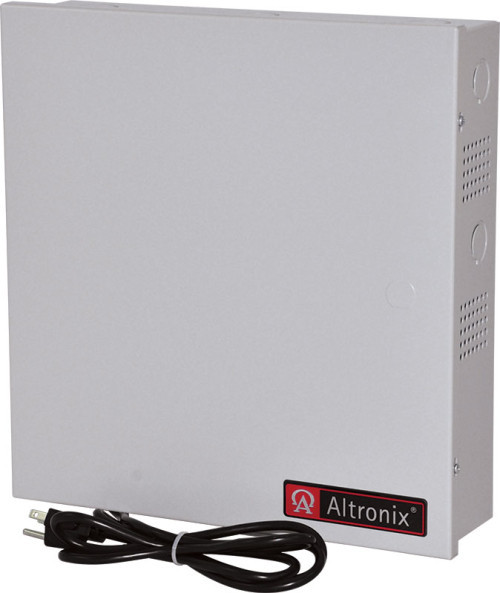

CCTV Power Supply, 32 Fused Outputs, 24/28VAC @ 12.5A, 115VAC, BC300 Enclosure, includes 3-wire line cord
ALTV2432300UL3 provides 24VAC or 28VAC distributed via Thirty-Two (32) fuse protected outputs for powering CCTV Cameras, heaters and other video accessories. Factory installed 3-wire line cord.
Input
115VAC, 50/60Hz, 2.7A.
Output
Thirty-Two (32) fuse protected outputs.
24VAC @ 12.5A (300VA) supply current (0.391A per device, 3.5A max.) or 28VAC @ 10A (280VA) supply current (0.313A per device, 3.5A max.).
Outputs are rated @ 3.5A.
Surge suppression.
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.):
24VAC: 154 BTU/Hr.
28VAC: 143 BTU/Hr.
System AC input VA requirement: 310.5VA.
Features
Secondary fuse rated @ 10A/250V.
AC power LED.
Power ON/OFF switch.
Spare fuses provided. (all models w/primary and/or secondary fuses).
Factory installed 3-wire line cord.
