Description

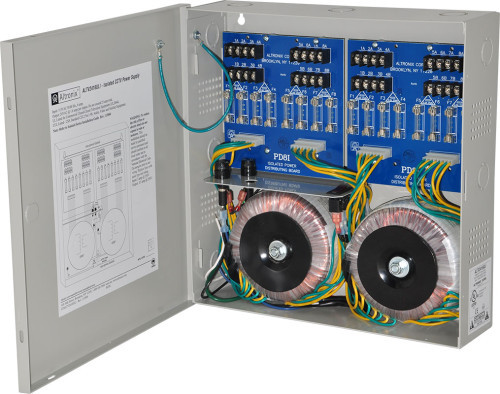

CCTV Power Supply, 16 Isolated Fused Outputs, 24VAC @ 25A, 115VAC, BC300 Enclosure
ALTV2416ULI Isolated CCTV Power Supply provides 24VAC distributed via sixteen (16) isolated fuse protected power limited outputs for powering CCTV Cameras, heaters and other video accessories.
Input
115VAC, 50/60Hz, 6A.
Output
Sixteen (16) fuse protected outputs.
24VAC @ 25A (600VA) supply current.
Outputs are rated @ 3.5A.
Surge suppression.
Features
Illuminated master power disconnect circuit breaker with manual reset.
Unit maintains camera synchronization.
Spare fuses provided.
Electrical
Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.): 304 BTU/Hr.
System AC input VA requirement: 690VA.
