Description

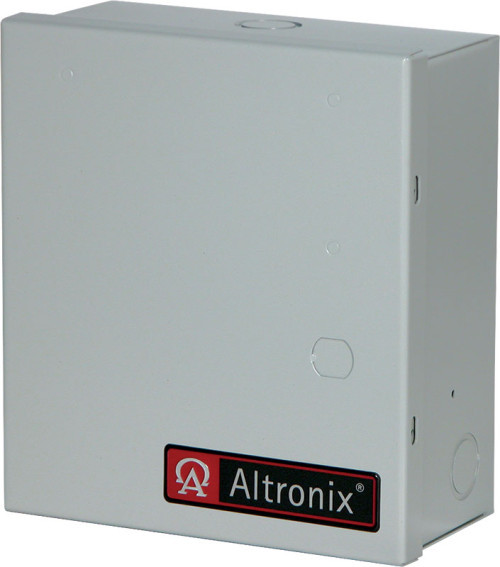

CCTV Power Supply, 16 PTC Outputs, 24/28VAC @ 8A, 115VAC, BC100 Enclosure
ALTV2416CB AC Wall Mount CCTV Power Supply provides 24VAC or 28VAC distributed via Sixteen (16) PTC protected outputs for powering CCTV Cameras, heaters and other video accessories.
Input
115VAC, 50/60Hz, 1.9A.
Output
Sixteen (16) PTC protected outputs (auto-resettable).
24VAC @ 8A (200VA) supply current (0.5A per device, 2.5A max.) or 28VAC @ 7A (200VA) supply current (0.438A per device, 2.5A max.).
Outputs are rated @ 2.5A.
Surge suppression.
Electrical
Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.):
24VAC: 98 BTU/Hr.
28VAC: 100 BTU/Hr.
System AC input VA requirement: 218.5VA.
Features
Secondary fuse rated @ 10A/250V.
AC power LED.
Power ON/OFF switch.
