Description
CCTV Power Supply, 16 PTC Outputs, 24VAC/28VAC @ 28A, 115VAC, BC300 Enclosure

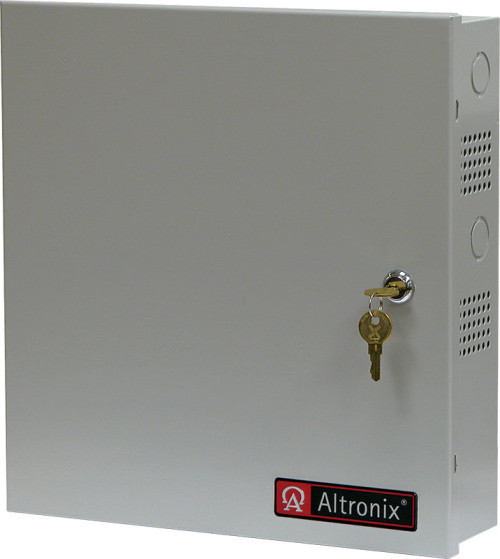

ALTV2416600CB AC Wall Mount CCTV Power Supply provides 24VAC or 28VAC distributed via Sixteen (16) PTC protected outputs for powering CCTV Cameras, heaters and other video accessories.
Input
115VAC, 50/60Hz, 5.4A.
Output
Sixteen (16) PTC protected outputs (auto-resettable).
24VAC @ 28A (700VA) supply current (1.75A per device, 2.5A max.) or 28VAC @ 25A (700VA) supply current (1.563A per device, 2.5A max.).
Outputs are rated @ 2.5A.
Surge suppression.
Electrical
Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.):
24VAC: 344 BTU/Hr.
28VAC: 358 BTU/Hr.
System AC input VA requirement: 621VA.
Features
Main fuse rated @ 15A/32V.
AC power LED.
Spare fuses provided. (all models w/primary and/or secondary fuses).
