Description

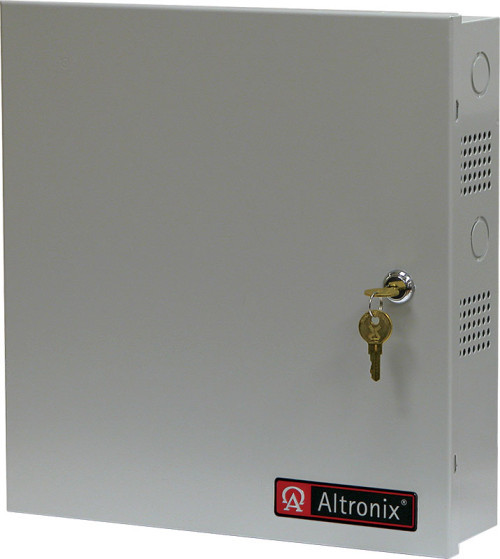

CCTV Power Supply, 16 Fused Outputs, 24VAC/28VAC @ 14A, 115VAC, BC300 Enclosure
ALTV2416350 AC Wall Mount CCTV Power Supply provides 24VAC or 28VAC distributed via Sixteen (16) fuse protected outputs for powering CCTV Cameras, heaters and other video accessories.
Input
115VAC, 50/60Hz, 2.7A.
Output
Sixteen (16) fuse protected outputs.
24VAC @ 14A (350VA) supply current (0.875A per device, 3.5A max.) or 28VAC @ 12.5A (350VA) supply current (0.781A per device, 3.5A max.).
Outputs are rated @ 3.5A.
Surge suppression.
Electrical
Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.):
24VAC: 172 BTU/Hr.
28VAC: 179 BTU/Hr.
System AC input VA requirement: 310.5VA.
Features
Main fuse rated @ 15A/32V.
AC power LED.
Spare fuses provided. (all models w/primary and/or secondary fuses).
