Description

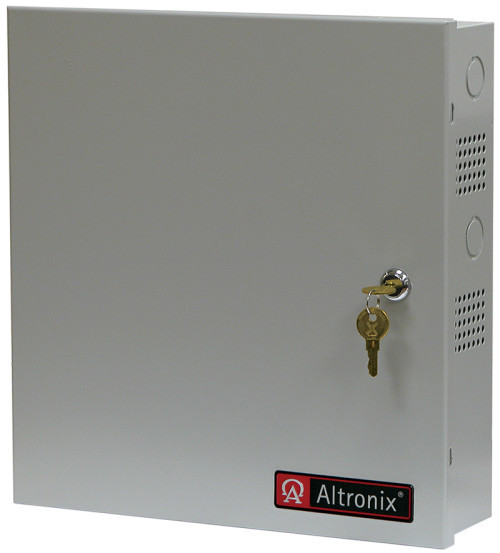

CCTV Power Supply, 8 Fused Outputs, 12/24VDC @ 4A, 115VAC, BC300 Enclosure
ALTV1224DC is designed to power CCTV Cameras and accessories. It will provide 12VDC or 24VDC distributed via eight (8) fuse protected outputs with a total of 4A total supply current.
Input
Input 115VAC, 50/60 Hz, 1.45A.
Output
Eight (8) fuse protected outputs.
12VDC or 24VDC field adjustable.
4A total continuous supply current (0.5A per device, 3.5A max.).
Outputs are rated @ 3.5A.
Filtered and electronically regulated outputs.
Electrical
Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.):
12VDC: 25 BTU/Hr.
24VDC: 49 BTU/Hr.
System AC input VA requirement: 166.75VA.
Features
AC input and DC output LED indicators.
Power ON/OFF switch.
Ease of installation saves time and eliminates costly labor.
