Description

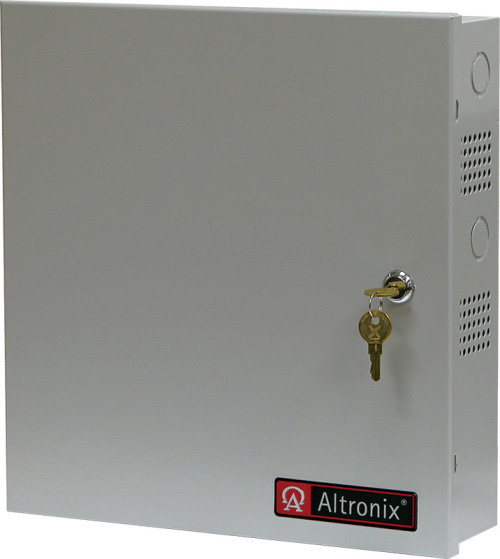

Power Supply Charger, 3 PTC Class 2 Outputs, 5/12/24VDC @ 3A, 115VAC, BC300 Enclosure
Altronix AL600UL3 triple output power supply/charger is designed for use with access control systems and accessories. It converts a 115VAC / 60Hz input into three (3) individually PTC protected 5VDC, 12VDC and 24VDC regulated outputs.
Input
Input 115VAC, 60Hz, 3.5A.
Output
5VDC, 12VDC, 24VDC simultaneous outputs.
5VDC @ 1.75A continuous supply current.
12VDC @ 1.75A continuous supply current.
24VDC @ 3A continuous supply current.
Two (2) Class 2 Rated PTC protected power limited outputs (5VDC and 12VDC outputs) and one (1) PTC protected output.
Outputs are rated @ 2.5A.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.
Battery Backup
Built-in charger for sealed lead acid or gel type batteries.
Automatic switch over to stand-by battery when AC fails.
Supervision
AC fail supervision (form "C" contacts).
Low battery supervision (form "C" contacts).
Battery presence supervision (form "C" contacts).
Visual Indicators
AC input and DC output LED indicators.
Temperature
Operating 0° C to 49° C (32° F to 120° F).
Storage - 20° C to 70°C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.): 52 BTU/Hr.
System AC input VA requirement: 218.5VA.
