Description
Access Control Power Supply Charger, Single PTC Class 2 Output, 12/24VDC @ 1.75A, 115VAC, BC300 Enclosure

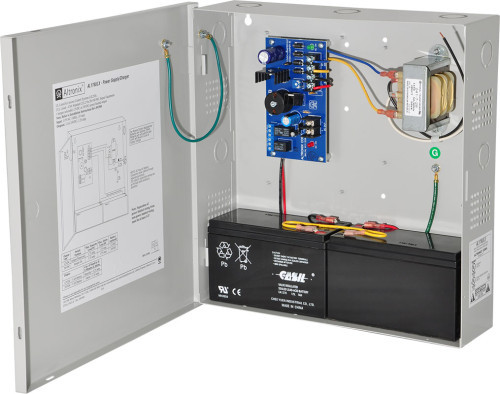

Altronix AL176ULX is a single output Power Supply/Charger that converts a 115VAC 50/60Hz input into a PTC protected 12VDC or 24VDC output.
Input
Input 115VAC/60Hz, 0.6A.
Output
12VDC or 24VDC selectable output.
1.75A supply current.
Class 2 Rated power-limited output.
PTC protected output, rated @ 2.5A.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.
Battery Backup
Built-in charger for sealed lead acid or gel type batteries.
Automatic switch over to stand-by battery when AC fails.
Supervision
AC fail supervision (form "C" contacts).
Low battery supervision (form "C" contacts).
Visual Indicators
AC input and DC output LED indicators.
Temperature
Operating 0ºC to 49ºC (32ºF to 120ºF).
Storage - 20ºC to 70ºC ( - 4ºF to 158ºF).
Relative Humidity 85% +/- 5%.
BTU/Hr. (approx.):
12VDC: 11 BTU/Hr.
24VDC: 22 BTU/Hr.
System AC input VA requirement: 69VA.
