Product Overview

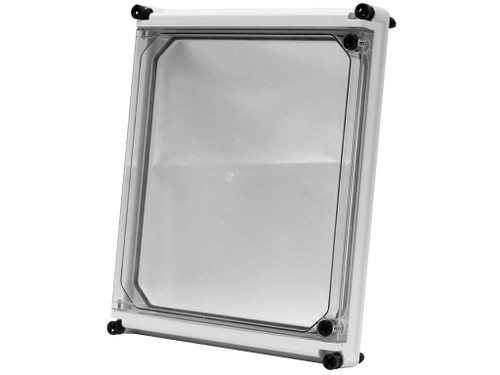

APO DT Trnsp Hngd Scr Cvr Insp Wdw Blk Insrt, 19.20x11.89x1.77, Smooth, Fiberglass

Available sized from 12” x 7” to 24” x 12” (H x W)
DT Covers are maintenance free and corrosion resistant
Frames are made from hot compression molded halogen free, self extinguishing fiberglass reinforced polyester (FRP) that can withstand continuous temperatures from -58°F to 302°F (-50°C to 150°C)
Inspection windows are made from transparent polycarbonate that can withstand continuous temperatures to 248°F (120°C)
Included thumb screw inserts allow quick window opening for access to interior component
Gaskets are made from continuously poured polyurethane foam

PRODUCT ATTRIBUTES

Height: 19.2 in / 488 mm
Width: 11.89 in / 302 mm
Depth: 1.77 in / 45 mm
Material: Fiberglass
Finish: Smooth Matte
Color: Light Gray
Color Code: RAL 7035
Weight: 3.55 lb

DRAWINGS AND DOCUMENT DOWNLOADS

ADDITIONAL PRODUCT DETAILS

APO DT Covers are designed for use as inspection windows in highly corrosive environments where easy viewing and access is essential.

BULLETIN NUMBER

AP2

INDUSTRY STANDARDS

UL Listed Types 3, 3R, 4, 4X, 13

Other Information

Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.
